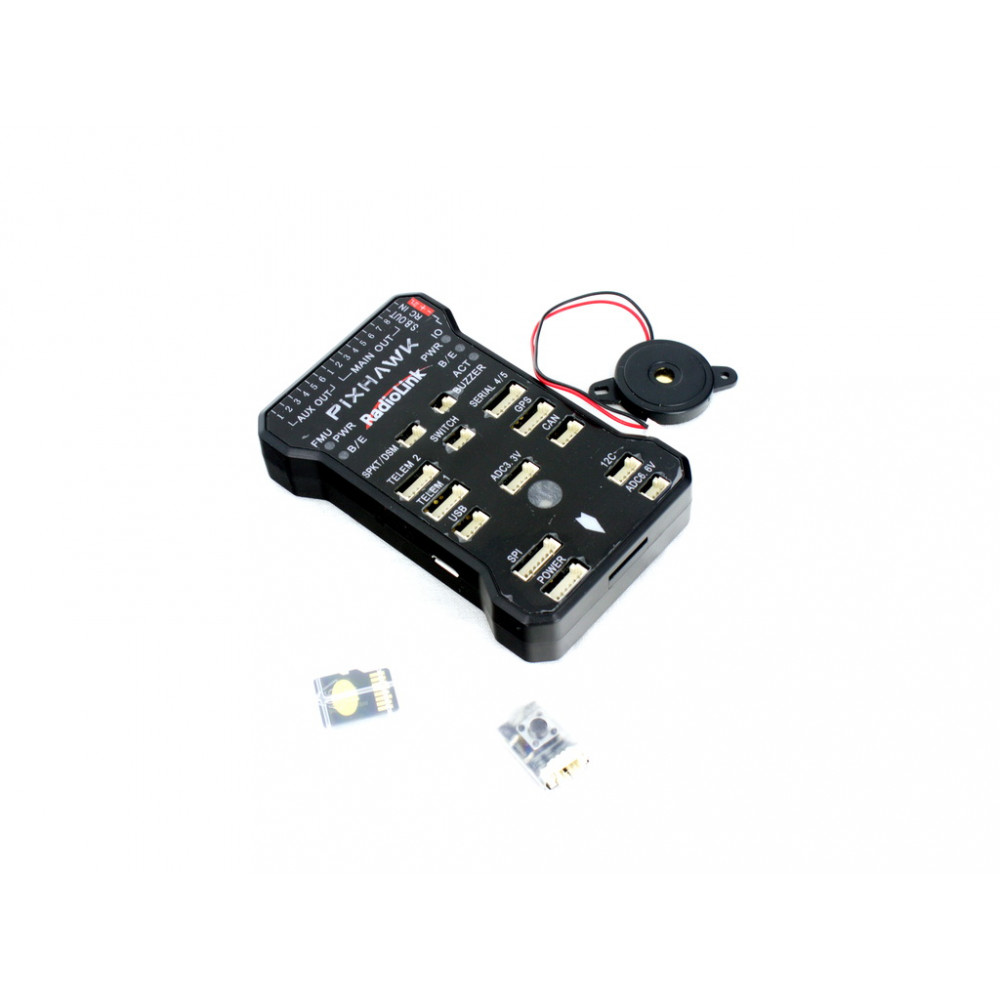

Полетный контроллер Pixhawk Radiolink

Технические характеристики Полетного контроллера PIXHAWK Radiolink:

• Процессор 32bit STM32F427 Cortex M4 core with FPU, 168 MHz, 256 KB RAM, 2 MB Flash
• Со-процессор 32 bit STM32F103 failsafe co-processor
• Сенсоры ST Micro L3GD20 gyroscope, ST Micro LSM303D 14 bit accelerometer / magnetometer,  MEAS MS5611 barometer, InvenSence MPU6000 accelerometer/ gyroscope
• 5x UART (serial ports), one high-power capable, 2x with HW flow control
• 2x CAN (one with internal 3.3V transceiver, one on expansion connector)
• Spektrum DSM / DSM2 / DSM-X® Satellite compatible
• Futaba S.BUS® compatible
• PPM sum signal input
• RSSI (PWM or voltage) input
• I2C
• SPI
• 3.3 and 6.6V ADC inputs
• Internal microUSB port and external microUSB port extension
• Вес: 37гр
• Размеры: 81.5x50x15.5мм
